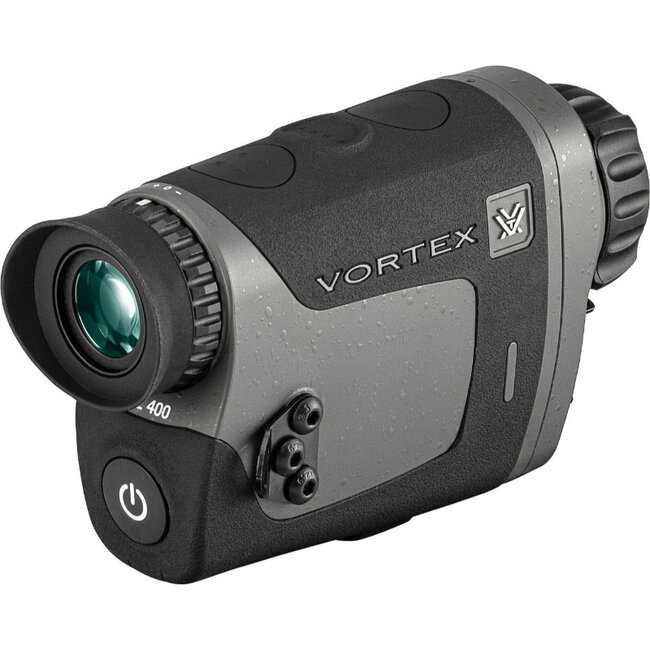

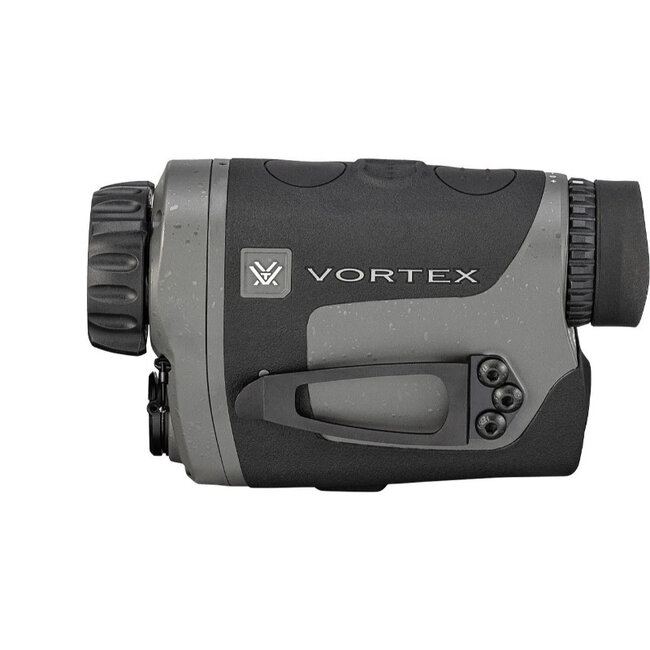

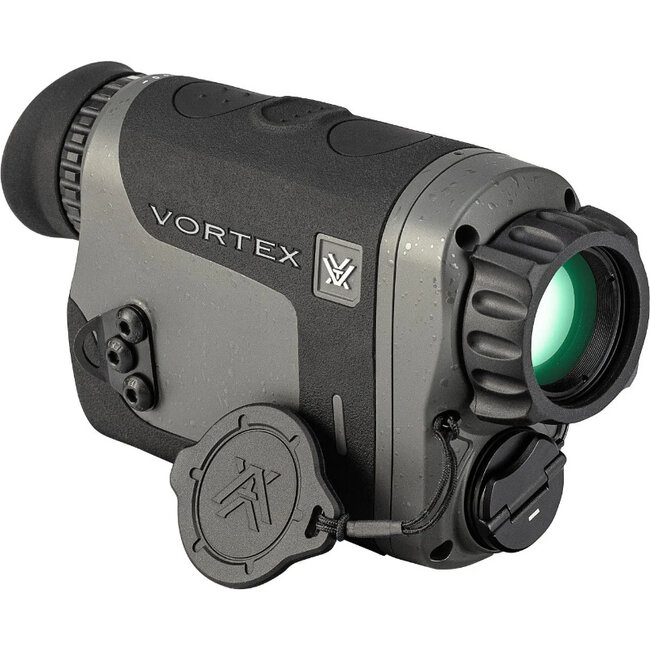

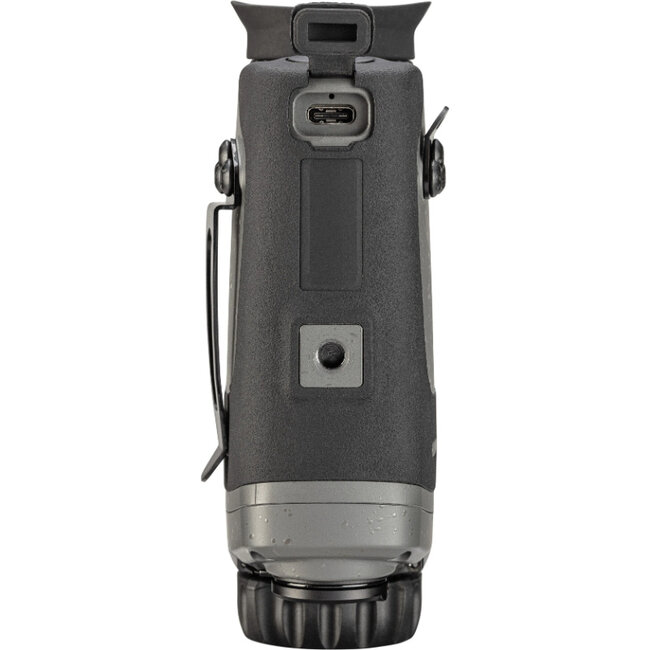

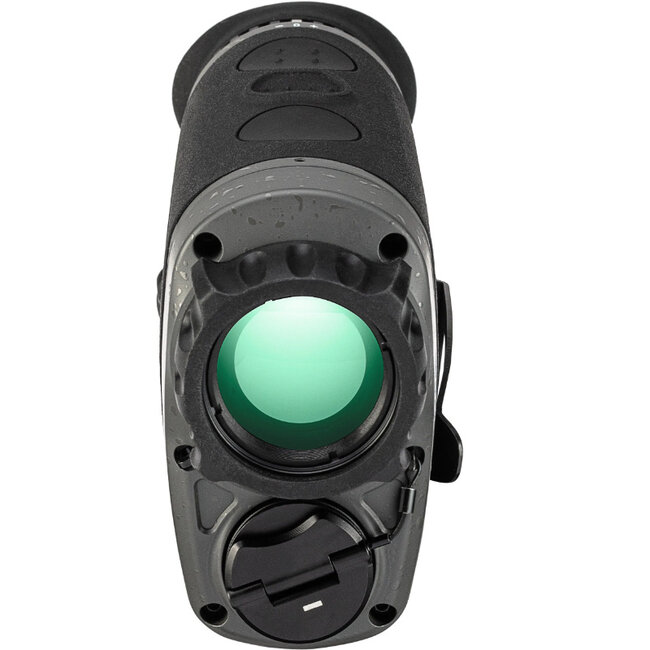

Vortex Veil 400 Thermal Monocular

The Vortex Veil 400 Thermal Monocular is a compact thermal imaging device designed for nighttime hunting and confident navigation in the dark. Its 400 x 300 sensor with 12-micron pixels produces sharp thermal images, helping you identify animals and heat sources at extended distances.

A 2.3x base magnification provides an effective balance between image detail and field of view. Three viewing modes and four color palettes let you adjust the display to changing terrain, cover and thermal conditions. With intuitive controls, an integrated compass and durable rubber armor, the Veil 400 is built for reliable field use from dusk to dawn.

Key features

• 400 x 300 thermal sensor with 120,000 heat-detecting pixels
• 12-micron pixel pitch for sharper thermal detail
• 2.3x base magnification
• 1x, 2x and 4x digital zoom
• Detection range up to 1,100 yards
• 1024 x 768 OLED display
• 50 Hz refresh rate

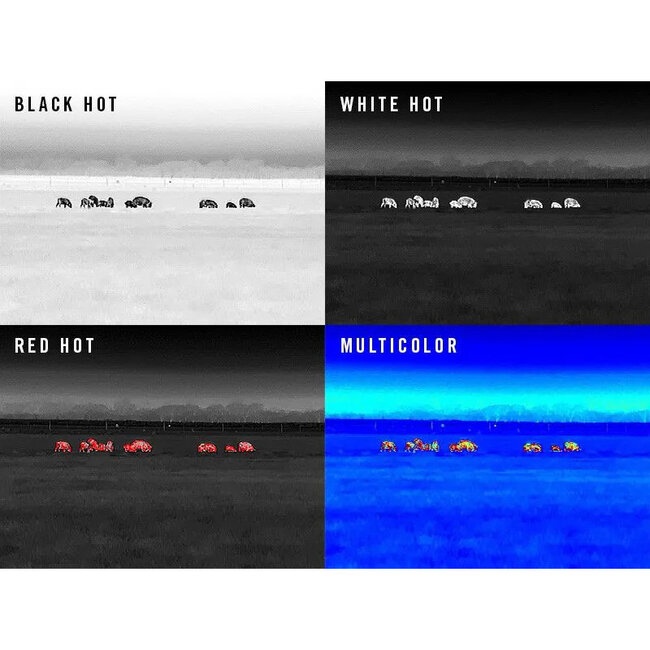

• Four color palettes: Black Hot, White Hot, Red Hot and Multicolor
• Three viewing modes: Balanced, Contrast and Brush
• Photo and video capture
• Integrated compass
• Waterproof, fogproof and shockproof construction
• Durable, non-slip rubber armor
• Tripod adaptable with a 1/4-20 connection
• Backed by Vortex’s unlimited, unconditional lifetime VIP warranty

Specifications

• Product: Vortex Veil 400 Thermal Monocular
• SKU: TML-VEIL425
• Magnification: 2.3x
• Objective lens diameter: 25 mm
• Detector resolution: 400 x 300
• Display resolution: 1024 x 768
• Display type: OLED
• Detector pixel pitch: 12 µm
• Refresh rate: 50 Hz
• Angular field of view: 11°
• Linear field of view: 57.8 ft at 100 yards
• Digital zoom: 1x, 2x and 4x
• Detection range: 1,100 yards
• Battery type: 18650
• Battery runtime: 4.5 hours per battery
• Length: 4.9 in
• Height: 3.2 in
• Width: 1.9 in
• Weight: approximately 13.3 oz

What’s in the box

• Vortex Veil 400 Thermal Monocular
• Two rechargeable 18650 batteries
• Battery charger
• USB-C to USB-A cable
• USB-C to USB-C cable
• Hard storage case
• Neck lanyard
• Lens cloth
• Utility clip
• 2 mm hex wrench
