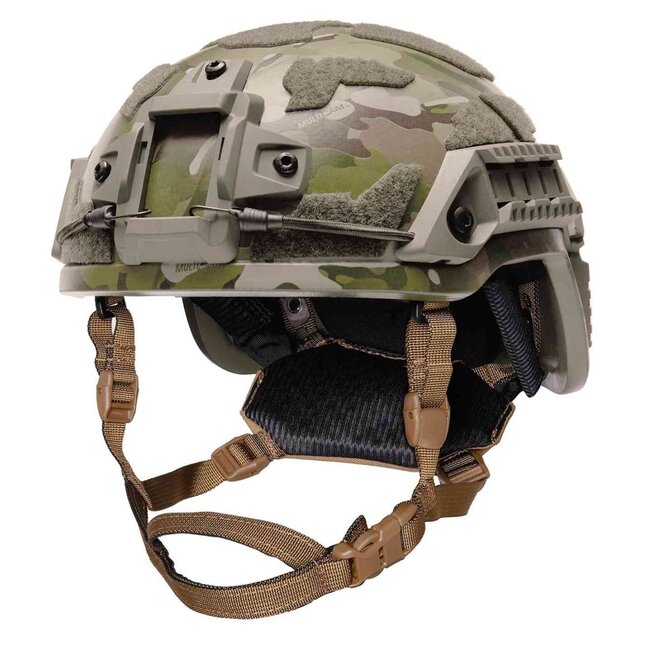

PGD ARCH GEN3 Ballistic Helmet (High-Cut) Multicam

The PGD ARCH GEN3 is a high-cut ballistic helmet built for demanding operational environments. Designed and manufactured in the EU, it is lab tested to NIJ 0106.01, including threats such as .44 Magnum and .357 SIG. Its DuPont Kevlar aramid shell and proprietary pre-preg lamination process deliver durable multi-hit performance at a low overall system weight, with strong focus on reducing Back Face Deformation (BFD) and blunt trauma risk.

Ballistic protection

Tested to NIJ 0106.01 with IIIA threats and selected special threats. A V50 STANAG 2920 value of 660 m/s is specified.

Fit & comfort

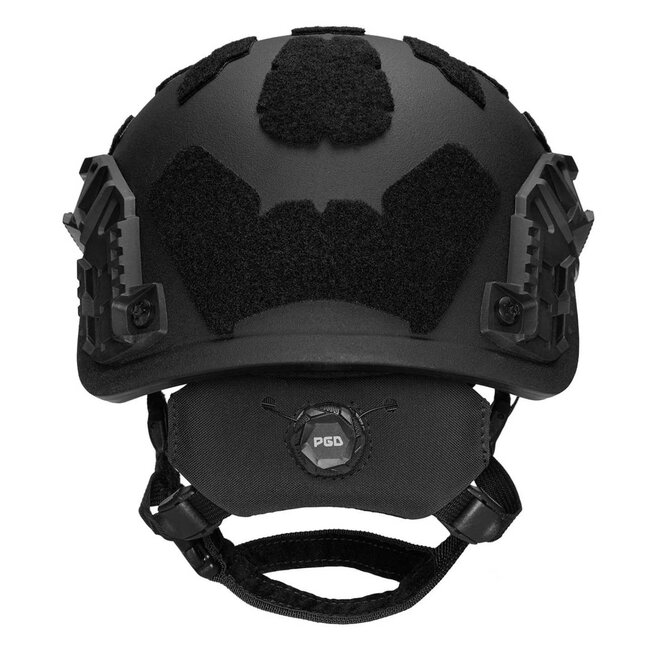

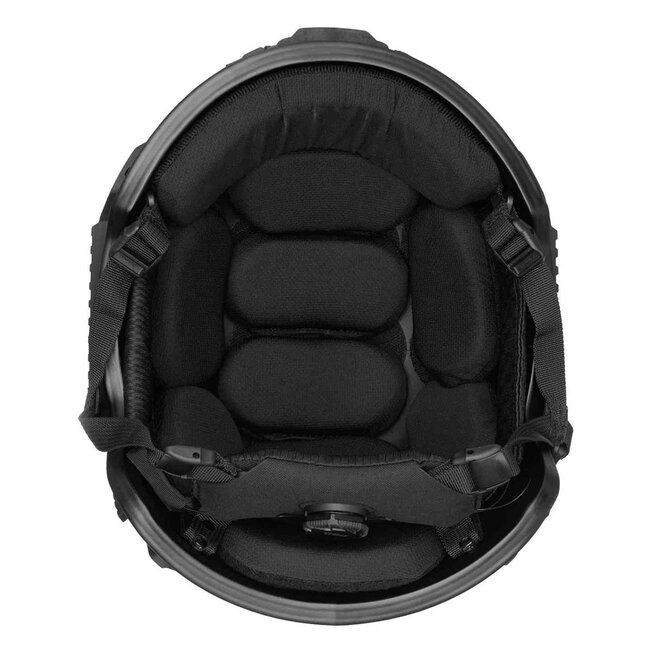

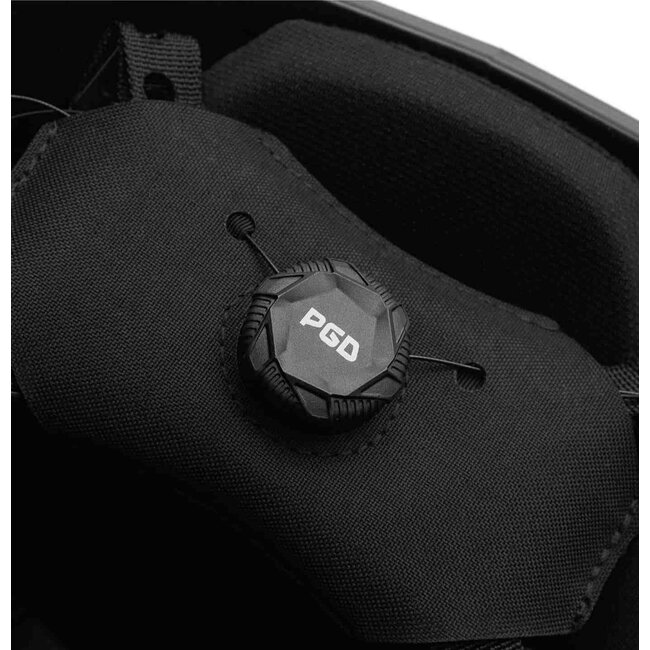

The PGD 10-pad memory foam liner adapts quickly to your head shape for all-day comfort. The PGD dial retention system with Duraflex buckles allows fast, secure adjustment.

Rails, shroud & accessory compatibility

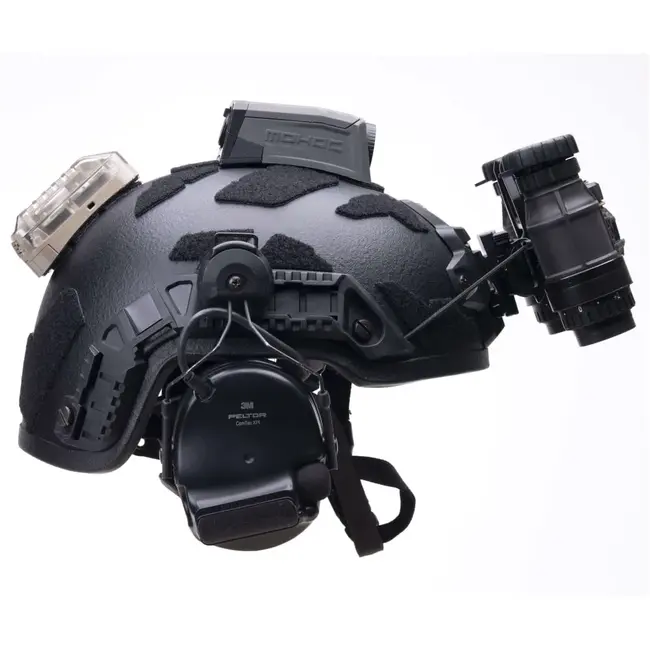

Side rails and the front shroud use a polymer + glass-fiber composite for high tensile strength and reduced weight. The shroud is compatible with Wilcox, Norotos, Cadex and similar night vision mounts. Rails support common headset adapters such as 3M Peltor, Sordin, Ops-Core AMP arms, Earmor and similar systems.

What’s included

• High-cut ballistic helmet
• PGD retention system (dial)
• PGD 10-pad helmet liner
• Side accessory rails
• Front shroud
• Velcro pads

Features

• NIJ tested (NIJ 0106.01) for IIIA threats
• Multi-hit aramid helmet shell (DuPont Kevlar)
• Excellent weight-to-protection ratio
• PGD dial system for fast, stable fit
• 10-pad memory foam for comfort and impact mitigation
• Rails + NVG shroud ready for accessories
• EU designed, sourced and manufactured
• 10-year ballistic warranty on the helmet shell

Specifications

• Ballistics (tests/standards):
  • NIJ 0106.01 + IIIA 0101.06: .44 Magnum, .357 SIG
  • NIJ 0106.01 + IIIA 0108.01: .44 Magnum, 9mm FMJ
  • Special threat: 9x18 mm steel core MAK 6.0 g (335±10 m/s)
  • Special threat: 7.62x25 mm FMJ 5.5 g (520±10 m/s)
  • V50 STANAG 2920: 660 m/s
  • 50% reduction in BFD vs 9mm FMJ (HPW-TP-0401.01B IIIA)
• Weight (complete system):
  • M: 1.30 kg
  • L: 1.35 kg
  • XL: 1.40 kg
• Sizes:
  • M: 52–55 cm
  • L: 56–59 cm
  • XL: 60–64 cm
• Colors: Black, OD Green, Multicam, Multicam Black, Coyote Brown
• Warranty:
  • 10-year ballistic warranty on shell
  • 2-year warranty on accessories
• Rails/shroud material: polymer with 50% glass-fiber, tensile strength 230 MPA
